TrueType Font in pdfTeX - III

Preface

You can use an tool: otftotfm, which can work with both *.ttf(sometimes may fail) and *.otf. Also see the answer in How do I use TrueType Fonts with PDFTeX using otftotfm?

Example - ‘arial.ttf’

get font info

Get font info(just to give an explicit vendor name, which will be the name of the *.map file):

1
otfinfo -i arial.ttf

You’ll get:

1
2
3
4
5
6
7
8
9
10
Family:              Arial
Subfamily: Regular
Full name: Arial
PostScript name: ArialMT
Version: Version 7.00
Unique ID: Monotype:Arial Regular (Microsoft)
Designer: Monotype Type Drawing Office - Robin Nicholas, Patricia Saunders 1982
Manufacturer: The Monotype Corporation
Trademark: Arial is a trademark of The Monotype Corporation.
Copyright: © 2017 The Monotype Corporation. All Rights Reserved.

generate dependency

Next, generate the required dependency(the name T1-arial will be used in *.fd file):

1
otftotfm -a --verbose -e ec  -fkern -fliga --vendor monotypecorp arial.ttf T1-arial > Arial.log

You’ll get:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
C:\texlive\2024\bin\windows\otftotfm.exe: glyphlist.txt found with kpathsea at c:/texlive/2024/texmf-dist/fonts/map/glyphlist/glyphlist.txt
C:\texlive\2024\bin\windows\otftotfm.exe: texglyphlist.txt found with kpathsea at c:/texlive/2024/texmf-dist/fonts/map/glyphlist/texglyphlist.txt
C:\texlive\2024\bin\windows\otftotfm.exe: encoding file ec.enc found with kpathsea at c:/texlive/2024/texmf-dist/fonts/enc/dvips/base/ec.enc
C:\texlive\2024\bin\windows\otftotfm.exe: c:/texlive/2024/texmf-dist/fonts/enc/dvips/base/ec.enc:103: warning: bad ligature ('space' has no encoding)
C:\texlive\2024\bin\windows\otftotfm.exe: c:/texlive/2024/texmf-dist/fonts/enc/dvips/base/ec.enc:103: warning: bad ligature ('space' has no encoding)
C:\texlive\2024\bin\windows\otftotfm.exe: c:/texlive/2024/texmf-dist/fonts/enc/dvips/base/ec.enc:114: warning: bad '{}' ('space' has no encoding)
C:\texlive\2024\bin\windows\otftotfm.exe: c:/texlive/2024/texmf-dist/fonts/enc/dvips/base/ec.enc:114: warning: bad '{}' ('space' has no encoding)
C:\texlive\2024\bin\windows\otftotfm.exe: warning: TrueType-flavored font support is experimental
C:\texlive\2024\bin\windows\otftotfm.exe: warning: 'liga' feature ignored, not supported by font
C:\texlive\2024\bin\windows\otftotfm.exe: placing encoding files in 'c:/Users/PC/.texlive2024/texmf-var/fonts/enc/dvips/monotypecorp'
C:\texlive\2024\bin\windows\otftotfm.exe: creating encoding file c:/Users/PC/.texlive2024/texmf-var/fonts/enc/dvips/monotypecorp/a_g2sfp5.enc
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/ls-R for fonts/enc/dvips/monotypecorp/a_g2sfp5.enc
C:\texlive\2024\bin\windows\otftotfm.exe: warning: assuming --no-type1 since this font is TrueType-flavored
C:\texlive\2024\bin\windows\otftotfm.exe: placing TFM files in 'c:/Users/PC/.texlive2024/texmf-var/fonts/tfm/monotypecorp/Arial'
C:\texlive\2024\bin\windows\otftotfm.exe: placing VF files in 'c:/Users/PC/.texlive2024/texmf-var/fonts/vf/monotypecorp/Arial'
C:\texlive\2024\bin\windows\otftotfm.exe: creating C:\Users\PC\AppData\Local\Temp\otftmp.2
C:\texlive\2024\bin\windows\otftotfm.exe: running vptovf C:\Users\PC\AppData\Local\Temp\otftmp.2 "c:/Users/PC/.texlive2024/texmf-var/fonts/vf/monotypecorp/Arial/T1-arial.vf" "c:/Users/PC/.texlive2024/texmf-var/fonts/tfm/monotypecorp/Arial/T1-arial.tfm" 2>&1
I had to round some heights by 12.0000000 units.
I had to round some depths by 1.0000000 units.
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/ls-R for fonts/tfm/monotypecorp/Arial/T1-arial.tfm
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/ls-R for fonts/vf/monotypecorp/Arial/T1-arial.vf
C:\texlive\2024\bin\windows\otftotfm.exe: placing TFM files in 'c:/Users/PC/.texlive2024/texmf-var/fonts/tfm/monotypecorp/Arial'
C:\texlive\2024\bin\windows\otftotfm.exe: creating C:\Users\PC\AppData\Local\Temp\otftmp.3
C:\texlive\2024\bin\windows\otftotfm.exe: running pltotf C:\Users\PC\AppData\Local\Temp\otftmp.3 "c:/Users/PC/.texlive2024/texmf-var/fonts/tfm/monotypecorp/Arial/T1-arial--base.tfm" 2>&1
I had to round some heights by 12.0000000 units.
I had to round some depths by 1.0000000 units.
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/ls-R for fonts/tfm/monotypecorp/Arial/T1-arial--base.tfm
C:\texlive\2024\bin\windows\otftotfm.exe: ignoring TrueType file ./arial.ttf found with kpathsea in '.'
C:\texlive\2024\bin\windows\otftotfm.exe: placing TrueType files in 'c:/Users/PC/.texlive2024/texmf-var/fonts/truetype/monotypecorp/Arial'
C:\texlive\2024\bin\windows\otftotfm.exe: running copy arial.ttf "c:/Users/PC/.texlive2024/texmf-var/fonts/truetype/monotypecorp/Arial/arial.ttf"
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/ls-R for fonts/truetype/monotypecorp/Arial/arial.ttf
C:\texlive\2024\bin\windows\otftotfm.exe: placing DVIPS map files in 'c:/Users/PC/.texlive2024/texmf-var/fonts/map/dvips/monotypecorp'
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/fonts/map/dvips/monotypecorp/monotypecorp.map for T1-arial--base
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/ls-R for fonts/map/dvips/monotypecorp/monotypecorp.map
C:\texlive\2024\bin\windows\otftotfm.exe: updating c:/Users/PC/.texlive2024/texmf-var/fonts/map/dvips/monotypecorp/monotypecorp.map for T1-arial
C:\texlive\2024\bin\windows\otftotfm.exe: c:/Users/PC/.texlive2024/texmf-var/fonts/map/dvips/monotypecorp/monotypecorp.map unchanged

‘*.fd’ file

make *.fd file – t1arial.fd:

1
2
3
4
5
6
\ProvidesFile{t1arial.fd}
[2025/08/10 scalable font definitions for T1/Arial.]
\DeclareFontFamily{T1}{Arial}{} % the name 'Arial' will be used in command `\fontfamily{Arial}`
\DeclareFontShape{T1}{Arial}{m}{n}{
<-> T1-arial
}{}

The file name has to be exactly t1arial.fd, consisting of the “LaTeX encoding name” (which is T1 for ec encoding) and the family name in lower case!

use example

use example as follows:

1
2
3
4
5
6
7
8
\documentclass[a4paper]{article}
\usepackage[T1]{fontenc}
\usepackage{lipsum}
\pdfmapfile{monotypecorp.map}

\begin{document}
\fontfamily{Arial}\selectfont\lipsum[1]
\end{document}

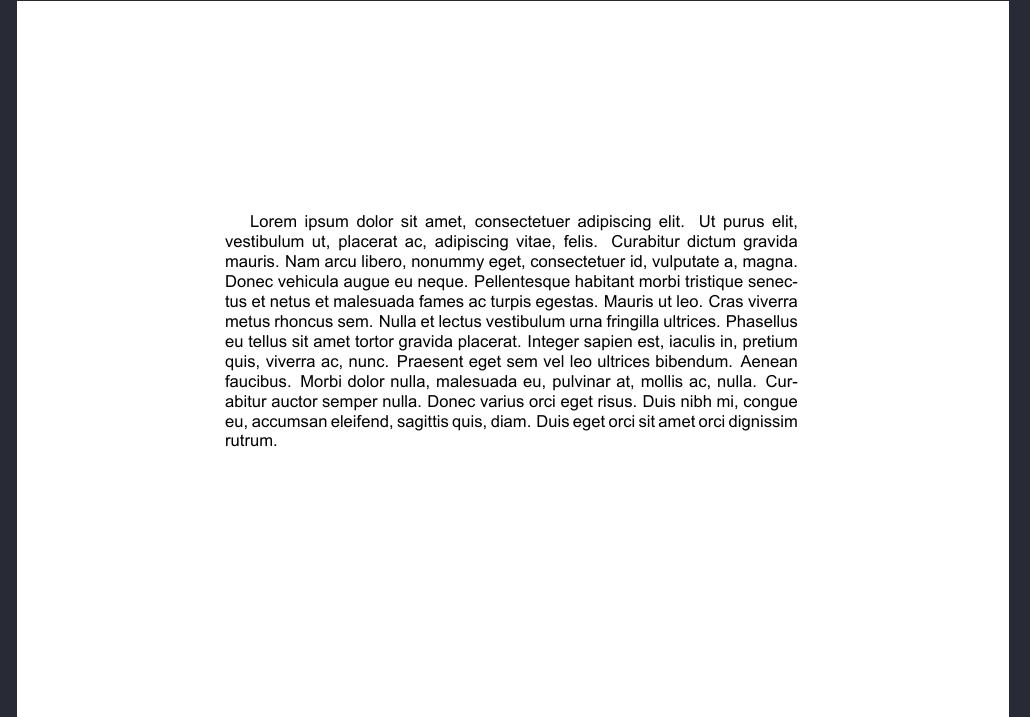

Finally, the pdf looks like:
